Monday, February 13, 2012

Another branded CAPTCHA startup gets funding

DoubleRecall apparently got $1.6 in VC from YCombinator and a bunch of other VCs. They pitched YCombinator 6 months ago and made quite an impression apparently.

This NYC based startup's business plan is to replace paywalls (e.g. when you try to access a news site and they want you to subscribe) with a 'brand awareness test'.

Basically, they present something that seems like a captcha, but it's really an ad. To get past this ad-wall, you must type in a sequence of words that are highlighted in the ad.

Here's an example (made by me):

Rice-A-Roni is still popular no matter where you live: New York, Chicago, or San Francisco. Anywhere, anytime. It's a real treat.
Type the highlighted words:  Rice-A-Roni San Francisco Treat

They are promising a high enough "ROI" (which I think they mean Return on Impression) that sites can remove paywalls.

You can read more on sfgate.

Programmers can probably crank out a browser extension to automatically get past these paywalls in a few minutes, so expect an arms race here.

Tuesday, January 10, 2012

Different 4D Captcha model experiments

One common complaint with the first batch of 4D captchas came from people who couldn't touch type. They would look down from the screen to find keys and loose their place in the rotating animation. When they looked back up to type the next character, they'd have to wait for the animation to rotate around again.

An idea I'm trying to flush out is to keep each letter rotating but in a fixed order.

It's probably easier to just show the model rather than try to describe it.

Each sphere would rotate in place.
Here's how the basic mode looks without too much variation. BTW, I use POV-Ray + python to do all these renderings.



Rendering of this model using 100% transparent spheres.

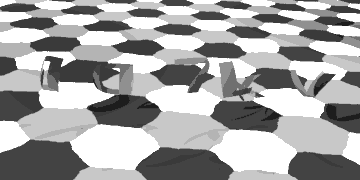

A. Basic - no sphere hint

You might notice a few things different about this captcha from the first batch (besides the obvious spheres model).

  1. Camera "bounce" isn't as jarring when the camera reverses direction.
  2. Image contrast has been increased.

Again. 4D Captchas are hard. That's the point. They should engage and work your Visual cortex. The question is, if your really look at them for a couple of seconds, can you read them reliably?

Experimenting a bit more with the scene. Here's a rendering with some turbulence on the hex grid.

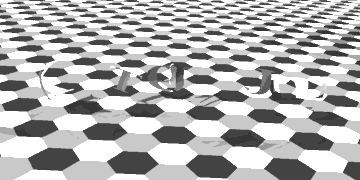

B. Basic - turbulence hex grid
The thought is that the straight lines in the Model A might be too much of a clue to cracking algorithms since all the characters are curved.

Rendered with the spheres 75% transparent to give a hint of the underlying shapes. Does it help newer users understand what they are looking at or just get in the way?

C. Basic - Sphere hints

These are a bit more experimental. I think a smart ORC could reverse this one, but it is easier on the eyes.
D. Non hex model
This is a mix of the water and the background.
E. Combo
I'm not sure which is a better approach. I like D, but I think it would be trivial to crack with OCR.

Any opinions are readability beyond the typical "these are too hard" reaction?

Data from first usability test

Note: Test online at www.vappic.com

Goal

People have never been exposed to 4D captchas (moving, 3D Captchas). Could they use them and if so, how quickly could they learn to do them in a reasonable amount of time?

Here are some result data from this first usability study.

Comparison of completion times and correctness for each captcha

About this graph

  • This chart shows 240 of the total 251 valid tests.
    Looking at the aggregates across all captchas, I tossed out the 3 users with: the fastest, slowest times, best and worse scores (11 total since 1 test fell into 2 categories).
  • The captchas are in order as they were presented in the test (right-to-left). Everyone got captchas presented in the same order.
  • No feedback was given if the captcha was answered correctly or not. The test just moved on to the next image.
  • Accuracy is green and higher is better. Range goes from -1.0 -> 1.0 and is based on a fairly complex algorithm. (see Scoring Challenges section below).
  • Time is blue and lower is better. It is measured in second from when the image finished loading until when the answer was submitted.
  • mHkRvh is the first 4D captcha presented where the red line is drawn. (see Captchas Used in Test table below).
  • There is a captcha missing from the results (nusMex géographie). This was a removed from the initial processing because the unicode character é was difficult to handle correctly using my tools. I will go back and try to re-add it. (See scoring discussion below.)
  • I didn't include scores for people who didn't complete the whole test. I need to go back and figure out drop-off rates.
  • For scoring, special characters, whitespace and case did not matter. (e.g. 'rrediali [RD684]' == 'rredialird648' == 'rrediali rd684')
  • Accuracy score is a non-trivial calculation. This seems like a simple algorithm like (Letters Correct / Total Letters) a good measurement; however, there are some cases where it doesn't work very well. In particular, if a user mistakes two letters like 'rr' for a single letter like 'm'. Technically, this is a single mistake, but it is counted as two: an 'r' is missing and the other r is replaced by an 'm'. I have an alternate scoring approach below that tries to compensate for this form of mistake.
  • This chart was created using Google Charts.

Scoring challenges

One interesting challenge was scoring "correctness" of an answer. The naive approach would be to just do a straight letter-by-letter comparison; however, if the user omits any character near the start of the answer, then the score looks worse than it really is.

Some examples, let's say the captcha is 'ABCDEF'
Answer: 'ABODEF'
One letter is incorrect in position #3
Answer: 'ABDEF'
Technically, only one letter is missing, but a character-by-character compare looks like 4 characters starting at C (e.g. 'CDEF')
This becomes even more complex for the rotating captchas were the user can start the answer anywhere.
Answer: 'CDEFAB' is 100% correct.
ABCDEF, just started typing at letter C
The next wrinkle happens when a user leaves out a character or inserts an extra one in addition to skewed starting locations:
Answer: 'DEFAB'
1 letter incorrect. C missing.
Answer: 'DEFABO'
1 letter incorrect. O vs C
Answer: 'CDEFABC'
Actually 100% correct, just starting typing loop over again! Not really a mistake for a looping captcha.
Answer: 'DEFAI3C'
1.5 letters incorrect. B was mistaken for an 'I3'. Technically, this is a single mistake, but two letters are wrong.
A mistake I struggled to deal with was when two letters is mistaken as one or vise versa. This happened for the standard captcha 'rrediali [RD684]' where many mistake the double r's as an m. It's really just one mistake, but a naive score would count it as two. What my score algorithm attempts to do is only penalize half for any missing or extra character. So in this case the score penalty is only 1.5 instead of 2.0

I've worked out algorithms to calculate scores for all these scenarios. I'm not convinced it's perfect, but it's a good start.

def calc_correctness_score(str1, str2):
    # not very efficient, but we are only doing a few hundred tests
    score = 0.0
    correct = 0
    str1len = len(str1)
    str2len = len(str2)
    shorterlen = min(str1len,str2len)

    for jj in xrange(0, shorterlen):
        if str1[jj] == str2[jj]:
            score += 1.0
            correct += 1
        elif str1[jj] == '_' or str2[jj] == '_':
            score -= 0.5  # missing or extra char is only 1/2 off.
        else:
            score -= 1.0

    # now lower score by the delta in str lengths
    delta = (max(str1len,str2len) - shorterlen)
    score -= delta
    correct -= delta

    return round(score/len(str1), 2), correct, len(str1)

This function returns scores in the range of -1.0 through 1.0.
1.0 is perfect, 0.0 means as many characters correct as wrong, < 0 means more character incorrect than right.

This bit of code is also used to figure out the best alignment when looking for missing or extra characters in answer. The '_' character is used as a marker for a missing character. I wanted to weight incorrect characters more heavily than mistyped characters to improve this alignment. The scores kind of reflect this.

However, this technique also gives lower scores to much shorter captchas (so all the 4D captchas). For example, 2 mistyped characters 'rr' for rrediali [RD684] results in a score of 0.73 since it's 13 characters long. While 1 mistyped character for NyYP3r means an even lower score of 0.67.

Other measurements

The test tracked all keyboard and mouse events within the page. One interesting event was how often the user had to delete something they typed.

Number of times the delete key was pressed
We can see the the "reediali [RD684]" and mHkRvh captchas gave people the most problems.

[edit 10Jan2011 9:22pm : David Jeske pointed out I missed an obvious captcha measurement. How many people pass versus fail a given test.]
Captcha
  Correctly Answered
  Percent Passed
fomeyingn
226
94.17%
euteouthen
157
65.42%
the eiveig
121
50.42%
rrediali [RD684]
129
53.75%
mHkRvh
187
77.92%
MpKsTH
170
70.83%
zeaBaP
213
88.75%
usPHVT
228
95.00%
NyYP3r
149
62.08%
Bephre
231
96.25%
Again, we see that, although 4D captchas are considered very difficult, their success rate is better than equivalently difficult traditional captchas did in this particular set of tests.

Traffic Info

People hate captchas... a lot. I get that.

When a user is trying to do something on a site, like remember their password or sign up for an account, being forced to solve a captchas is similar to having to find the right key to open a locked door. It's not their actual goal, but an obstacle stopping them from doing what they want. Being annoyed and disliking captchas is understandable. However, a lot of usability traffic came from people who are actively anti-captcha.

What is your level of knowledge regarding Captchas?
36Have a little knowledge of wavy letters used around the web.
22Can spell Captcha correctly, but that's about it.
159Already knew about Captchas and why they are required.
63Know what C.A.P.T.C.H.A. stands for without looking at wikipedia.
36Have designed/added support for Captchas on a website.
6Have written code that mock current, weak Captchas!

Do you have any opinion about Captchas?
26 Really hate them... no really.
79 Find them annoying, but whatever.
67 Accept them as a necessity and I floss daily.
0 Understand the necessity, but feel they could be better implemented.
19 Enjoy these Turing tests reaffirming my humanity.

Post test questions about special conditions. Of the 241 tests used, 22 users indicated having some  condition that it might have some effect on their results.

(ToDo: look at these user's scores and see how they compare to the average.)

Here's some screen shots from vappic.com's traffic during the usability tests.






John Foliot (who now works for JP Morgan Chase) posted a rant on his accessibly oriented blog about how evil the 4D captcha experiment is:
The developer of this little bit of misery (an ex-Google employee no less – he should know better) has posted his email address (tomn@vappic.com) and so one thing you can do is write this guy and give him some appropriate type of feedback on this project: I’m not advocating an email equivalent of a DOS attack, but hearing from tens or hundreds or even thousands of end users encouraging him to go pursue another type of project might get his attention.
Irony is, DoS attacks are stopped by technologies such as captchas. Still, his little rant got reposted to other blogs and I think the users base was slightly skewed as a result. I welcomed the traffic though.

David Jeske sums up a reasonable point of view on captchas in his various Vappic discussion group posts that reflect my feelings. The anti-captcha viewpoints are also listed on the site.

Some conclusions


Image parameters

When first designing the animated GIFs there were lots of decisions. How many frames are needed: 30, 60, 90? How fast should the animation be (fps)? What dimensions would be big enough? How many colors should the GIF have 4, 8, 32, 254 colors?

Each parameter effected the usability and file size of the images.

I did lots of random tests on a few friends and settled on something good enough for this test:
 - 72 frames at 0.09 sec/frame (~ 11fps). Total playback duration is ~6.5sec.
 - 200px x 150px (wide x tall)
 - 4 colors mono (avoids color blindness issues)

It would be nice to do more usability tests to determine what combination of animated gif parameters is really ideal, but I don't have an unlimited pool of testers and I wanted to gather data related to people's first exposure to 4D captchas.

The choice of only using 4 colors was intentional. The thought is that fewer colors provides less information for OCR (computer based character recognition) to reverse engineer the model and guess the captcha.

Contrast was just too low on the GIF images. This was my fault. When generating the captchas in POV-Ray it's very difficult to control the image contrast. I've since found a solution in the post production phase when the images are turned into animated gifs.

Camera Movement

People complained about extreme camera movements. The Trig function SIN() used for camera movement has "bump" effect when it reaches the end of a cycle. It was a little too jarring.

However, while people complained about it, the scores seem better than ones with minimal camera movement.

I've tweaked the camera movement a bit in newer animations. POV-Ray code:

function(amp,decay) { amp*sin(localclock1*pi*2)/exp(decay*localclock1) }

Naturally, there is some variation with the camera movement to prevent

Unfamiliarity vs Usability

People quickly got better at 4D captchas with just a little bit of practice. The first 4D captcha took 25.69s and had an accuracy of only 0.892. By the 5th and last 4D captcha, that had improved to 10.92s and 0.988 accuracy.

The animated gif is only 6.5 seconds long, but the first letter doesn't come around until frame 24 (2.16s into animate). So, it seems likely that most people were able to type the captcha on the first rotation. Accuracy is on par with the easiest, standard captcha in the test. This one had a 0.987 accuracy and took 9sec to solve. It was the first captcha in the test, so we can assume the speed and accuracy might be lower because of its position.

(see Captchas used in test table below)

Low accuracy for NyYP3r captcha

NyYP3r captcha is interesting. We see a noticeable drop in accuracy and an an increase in time to type it.

My initial theories were:
1. Touch typists still need to look down a the keyboard to type the '3'
2. There is less camera movement in this 4D captcha than all the others

Here's a breakdown of the top answers for this captcha. Mistakes are in red.
answerscorecount
nyyp3r1156
nvyp3r0.6772
nyypsr0.673
nyyr3r0.672

Looking at the NyYP3r animation closer, you'll notice that the bottom part of the lower case 'y' rotates out of frame and is clipped. This might account for why so many people got this character wrong.

Table showing top answer clusters for each captcha.

Touch typists and rotating captchas

Lots of people mentioned loosing their place in the rotating captcha when they looked down at the keyboard.

This is a solvable problem by using a different 3D model; however, one solution someone found was to read the 4D captcha out loud as it spun, then typed the whole string into the answer box afterwards.

[edit: Here's a blog posting exploring some different 4D models that address this issue.]

References


Captchas used in test


Captcha
  time      score    image source
fomeyingn 9.04s 0.987 Google
euteouthen 11.56s 0.898 Google
nusMex géographie -- -- Microsoft
the eiveig 8.68s 0.869 Microsoft
rrediali [RD684] 14.63s 0.850 ReCaptcha
mHkRvh 25.69s 0.892 Vappic
MpKsTH 16.84s 0.893 Vappic
zeaBaP 12.87s 0.947 Vappic
usPHVT 12.4s 0.977 Vappic
NyYP3r 14.4s 0.857 Vappic
Bephre 10.92s 0.988 Vappic


Data

There is probably lots of other interesting conclusions that could be drawn from this first usability test. For example, one tester waited over 30seconds for images to download and display.  Here's some of the test data that's been anonomized and processed: Google Spreadsheet.

About making this test

I used several technologies when creating Vappic. The captcha images are rendering using Python and POV-Ray, then turned into animated gifs using Python + ImageMagick + Gifsicle.

Server was written in Python for Google App Engine platform with heavy use of JQuery (javascript). I created a way to cheaply host a large number of huge images in GAE. I created an example project, pis-demo to share how it was done..

Post processing used Python, Excel, Sql, some js based tools I wrote. One javascript based online tool has proved very useful for creating tables: merge magic utility.

One of the biggest challenges was just bouncing between programming languages: POV-Ray rendering language, python, javascript, sql.

And naturally, one of the bigger pain-points was dealing with Internet Explorer. It ended up only being 3% of my users but a significant amount of work.

Monday, November 7, 2011

Misconceptions about vappic 4d CAPTCHAs


It's hard to get attention if you write a blog. Sometimes a gimmick like "ranting" or trying to invoke some kind of "act now" response can help. Let me try to answer the alarmists out there since replying on their blogs just feeds their traffic and they can filter whatever messages they want.

First, this is a personal research project, not a company or a startup. If you're someone who works at Stanford or other educational institution, you should get what this means: "let's gather some data and learn some stuff". Sure, if you're against experiments to learn about ideas than rant away, it is the internet after all.

Second, the fact that this test looks at usability as part of the research should speak clearly how important it is. Many CAPTCHAs today have not undergone *any* usability tests. The survey even looks for people who may have some unique physical trait where these captchas don't work for them (it's one of the handful of questions asked).

I'm traveling with spotty internet connectivity, so my friend David have been helping me reply to people emailing in questions and opinions. However, we don't have hard data yet (thus the experiment) so we can't say too much.

If you have an opinion you want recorded as part of my research, please input it here: http://www.vappic.com/surveyend

To find out more, just read the homepage:
http://www.vappic.com/

Thursday, November 3, 2011

Usability test 3 live

Changes:
- Fixed bugs with IE and Firefox
- Larger sizes (from 120x160 -> 150x200)
- 4 color palettes for tests with different camera movements
- Some letters cast shadows, some don't. (will anyone notice?)
- More clear about beginning and end of captcha. Doesn't matter when solving, but people like having the visual marker.

Notes:
 - The solve random captchas page serves older test captchas that use different framerates, sizes, etc.

If you have find any site bugs, please email tomn@vappic.com

Tuesday, November 1, 2011

Quick usability study feedback (v2)

I've launched the usability study to a small group of smart friends and am getting some good feedback.


Too small
I'm working on increasing the site's font and scaling up the captchas.


Need a clear stop/end point.
Even though the input doesn't care where you stop/start. Hey, you can even retype a few characters and it works; however, users feel lost without the delimiter. I'm considering adding more space between characters or maybe even a dash; however, the overlapping characters is what makes edge detection so hard.


Conflicting "it's too fast", "it's too slow" feedback.
Not sure what to do about this. I've done so many that I can do them very quickly.  The animations in the basic test were 7.2s long. Once you realize you can start anywhere, they take slightly less time to solve.

Colors!
 People want more color. I had some prettier early prototypes:

But there's too much color information. We were able to unroll and break it pretty easily.

Unrolled version of the above Captcha where vertical strips are taken from each frame and laid side-by-side:
A4g5Ep2_ElE2BEhL9RmmV9cVQiYqbWbFrXhkDSBMYLIePBI50ly2pQo03tfXGp4P0pMjch5wKsgExt1NUO4 (300×960)
click to zoom

The current generation uses 15 colors or fewer. But I do miss the color.

What about Captcha Farms?
Captcha farms are an ongoing issue. Hopefully, the extra time it takes to read this captcha will make it a bit more expensive to farm out than the current $0.80 for 1000 entries. Once I get more usable numbers from the study, I'll know the success rate / times for both types of captcha.

There's a recent news cluster about decaptcha automated attacks being able to quickly break most captchas. When anyone can download a piece of software and crack them, then they've reached their end-of-life.

Variety
If you look at http://www.vappic.com/moreplease you'll see a mix of different attempts in there (you can just hit the skip button). Some are rather crazy with the camera others are "HD".

History

I started experimenting with animated captchas with David Jeske back in mid-2007 while at Google. Our hypothesis was based on two opportunities. First, because of how good humans are at understanding visual information, it may be possible to make 3d motion captchas which are both more mathematically challenging to break and easier for human users to answer. Second, a motion based captcha that takes time to view would increas the cost of 'human captcha farms', where users are paid to answer captchas. As sound as we felt our hypothesis was, at the time we were unable to come up with something better than existing static images. After multiple weeks of 20% time, the effort was shelved.

Fast forward to mid 2011. Current captcha techniques seem to be losing the battle between accessibility and protection. Users can attest that captchas are becoming so distorted it's often hard for legitimate users to answer them, yet advanced cracking techniques and captcha farms are continuing to compromise them. David and I still believed in our original hypothesis, and I wanted to take another shot at 3d animated captchas.

For us, the process of creating a better captcha is intertwined with breaking captchas. Each iteration, and our attempts to defeat our own ideas brings us closer to something possibly workable.

Our current prototypes are still very much a work in progesss, and you can help evaluate and refine the ideas! Visit the test site (www.vappic.com) to participate in the usability study for accuracy and timing. Once I enough statistics, I'll release the data. If any hard core engineers are interested in trying to crack the designs, please let me know.
